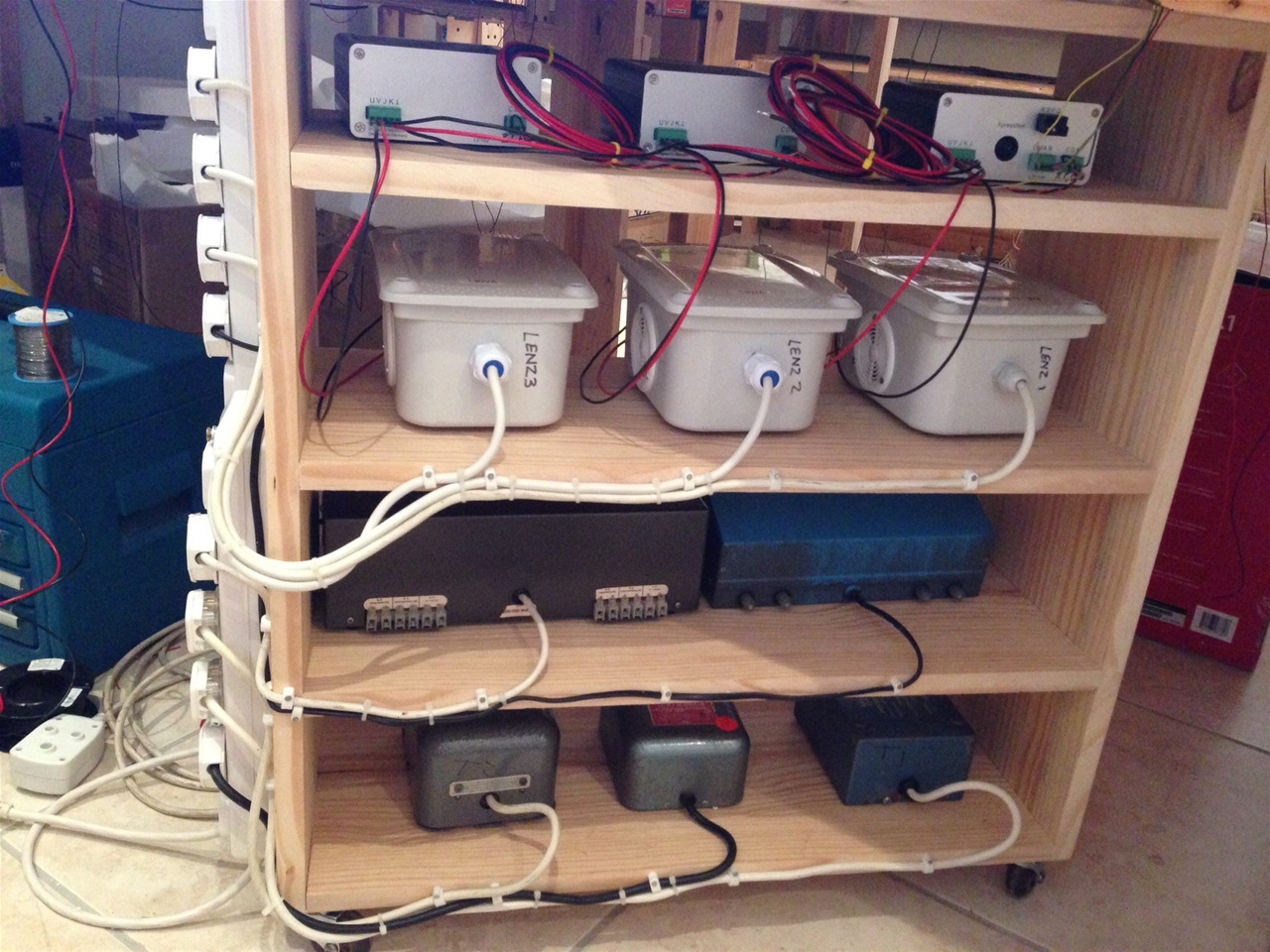

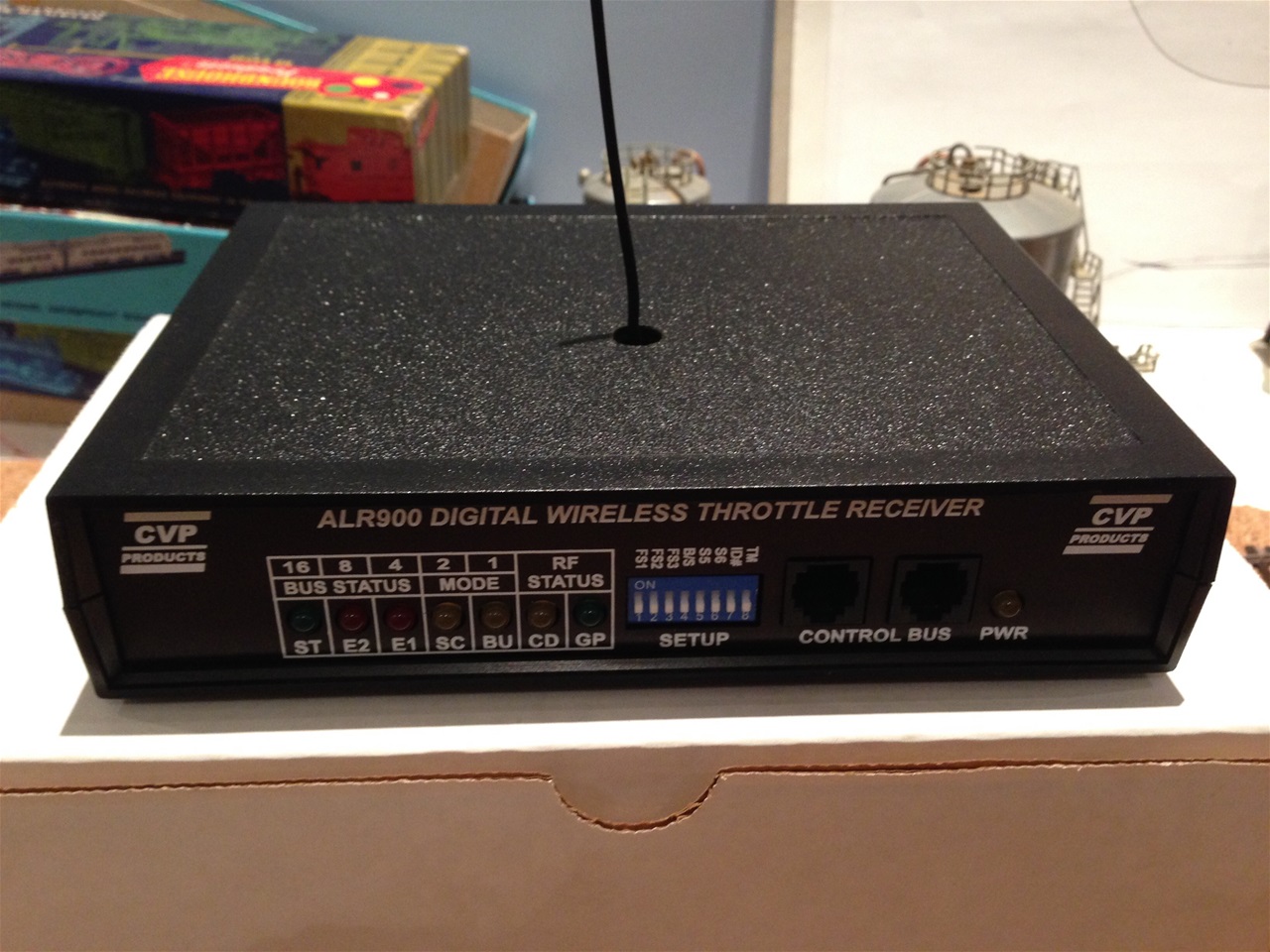

I am using a Lenz DCC system with three power districts on the layout with CVP products wireless throttles. Each district has two circuit breakers. My bus wires are red and black. Power for turnouts use their own bus with blue and white wires. All lights on the layout has their own bus with orange and yellow wires. The Lenz, wireless consoles and all transformers are mounted on a storage rack with lockable castor wheels for easy access. Wiring from the storage rack is in a long loom for easy access.
-
![]( "W&DCC1")
-
![]( "W&DCC2")
-
![]( "W&DCC3")
-
![]( "W&DCC4")
-
![]( "W&DCC5")
-
![]( "W&DCC6")
-
![]( "W&DCC7")
-
![]( "W&DCC8")
-

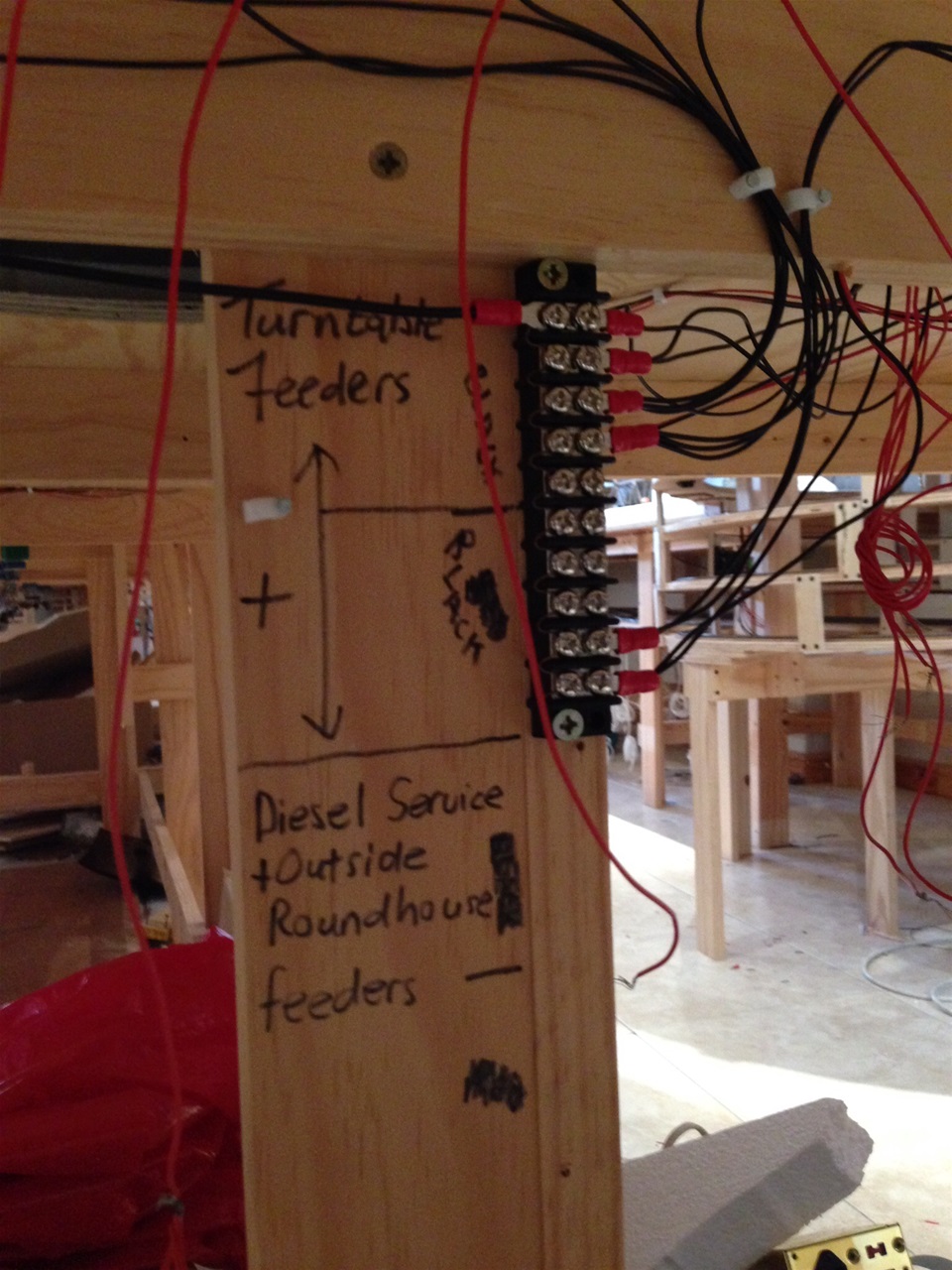

![]( "W&DCC9")
-
![]( "W&DCC10")

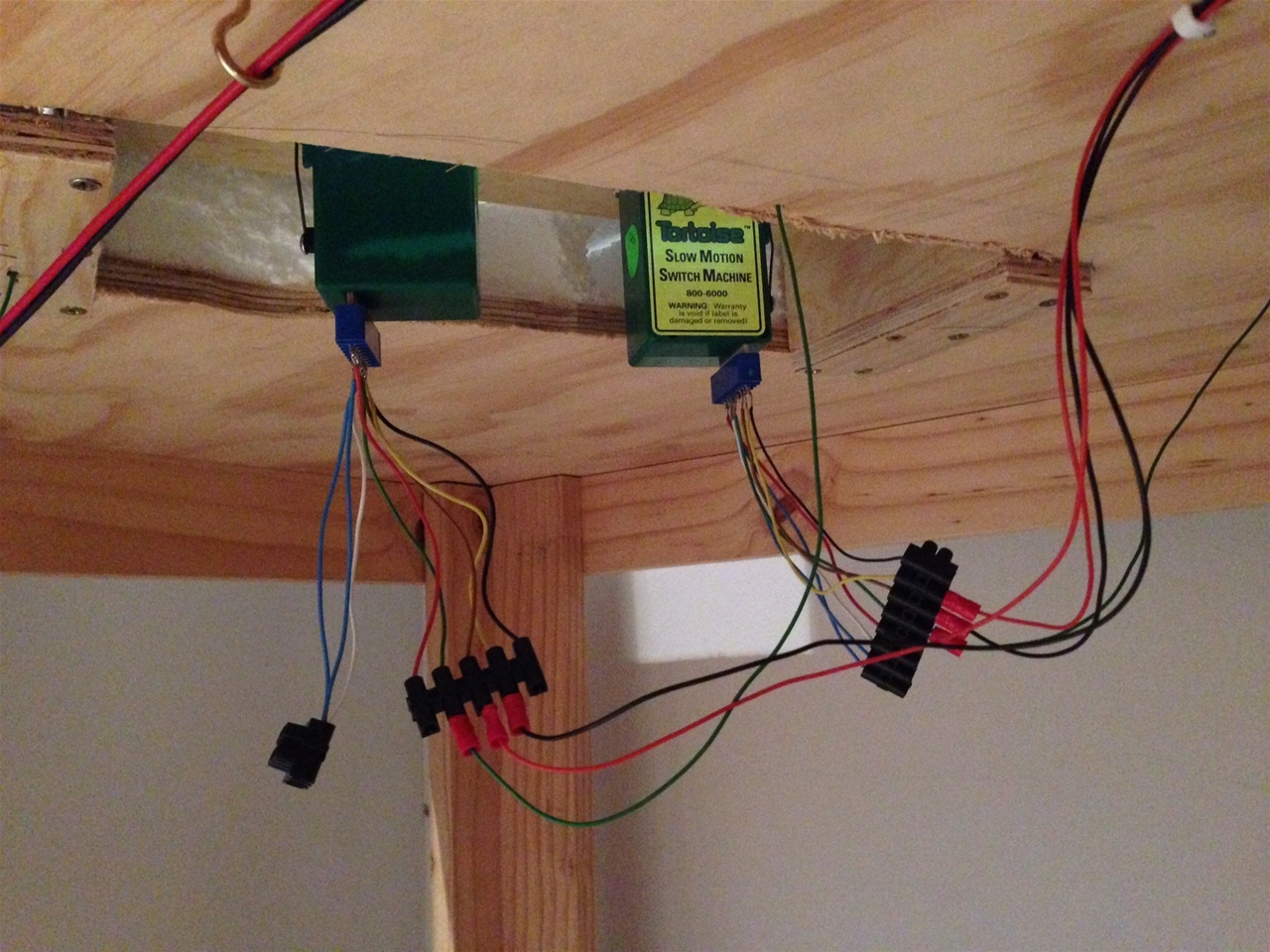

Tortoise wiring looms for later installation of panel switches, LEDs and signals
-
![]( "W&DCC11")

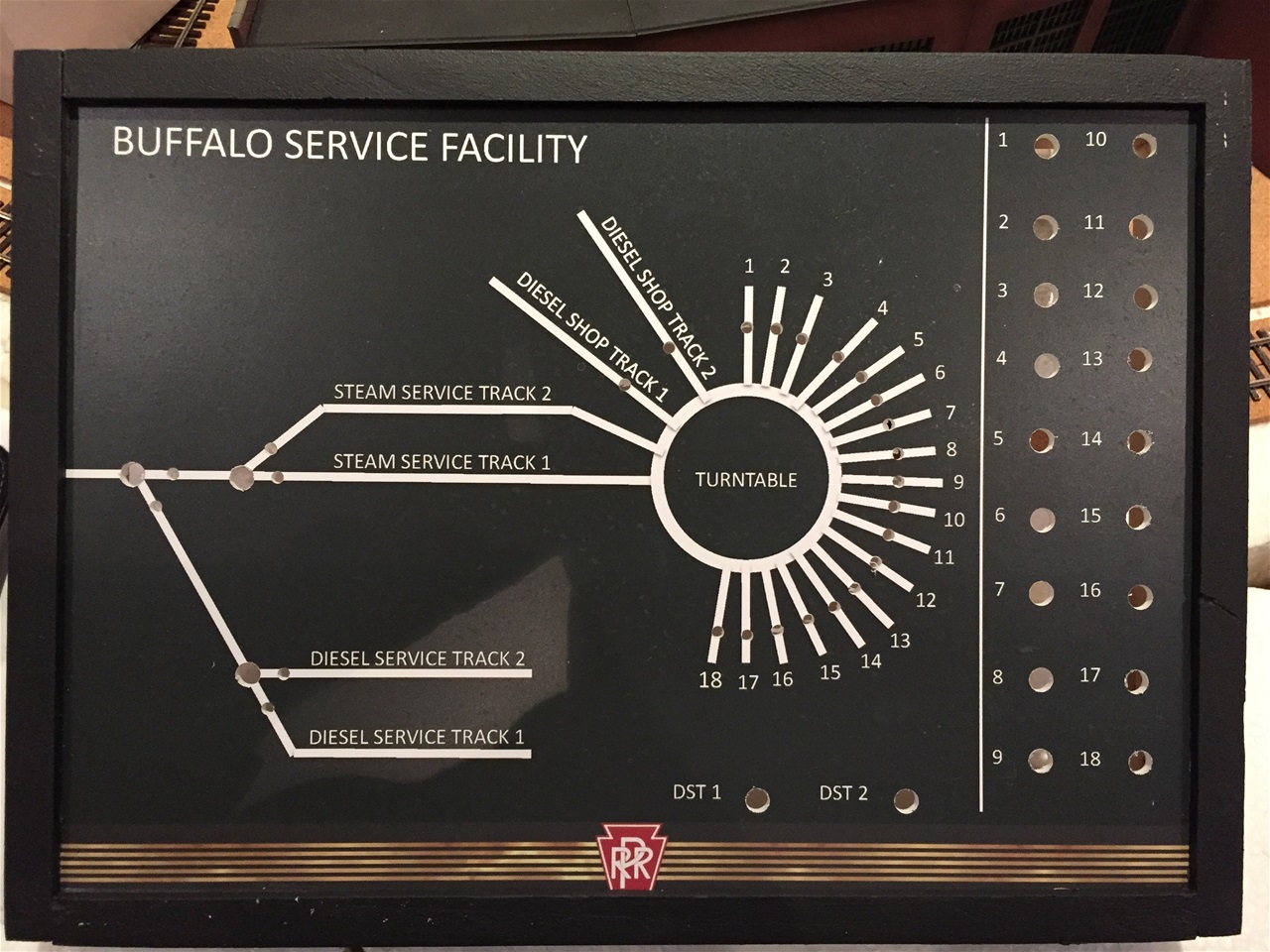

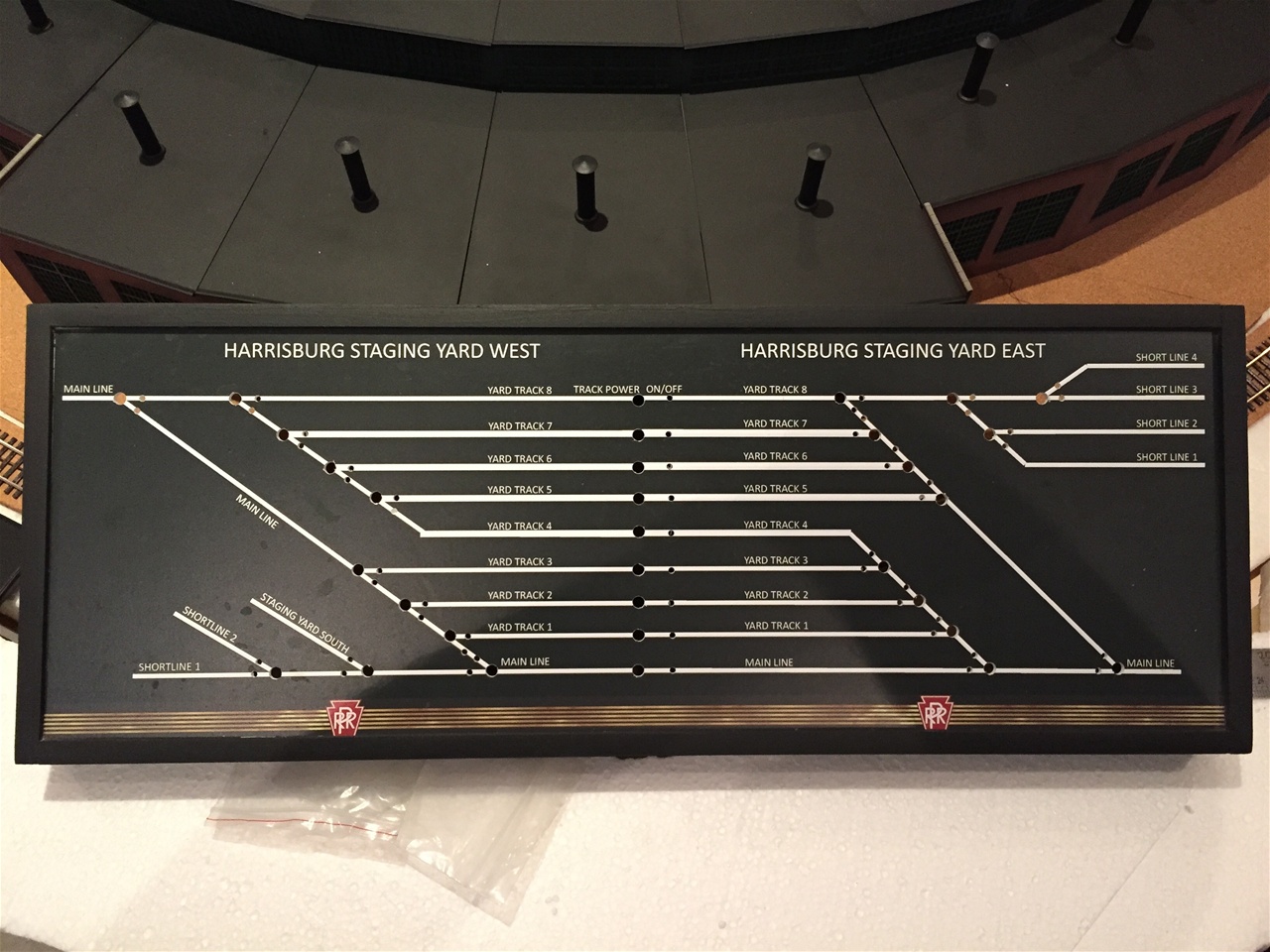

Work has started on the switch panels
-
![]( "W&DCC12")

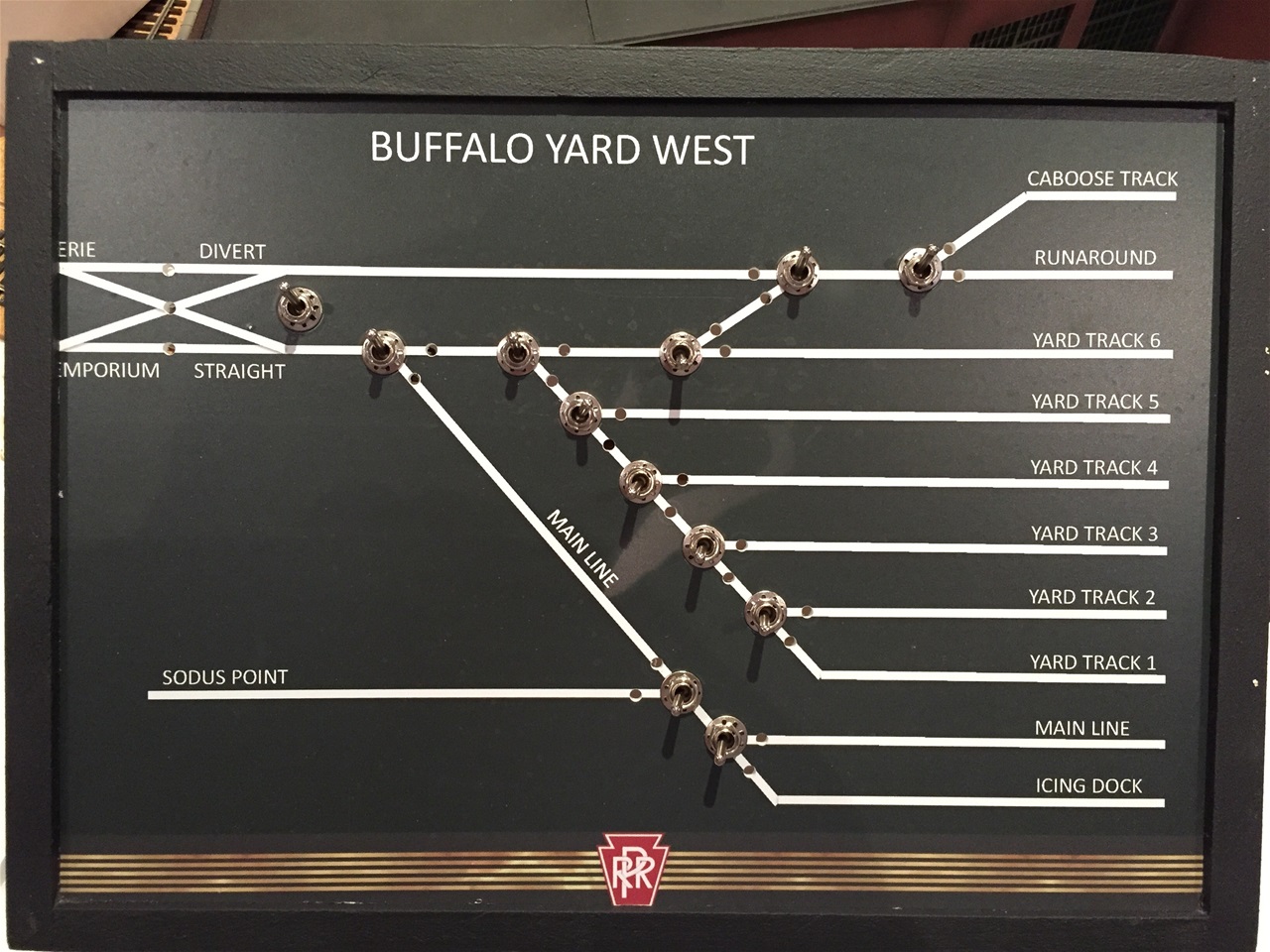

A total of 16 panels will be needed to operate the layout
-
![]( "W&DCC13")
DPDT Switches fitted, now for the wiring!
-
![]( "W&DCC14")

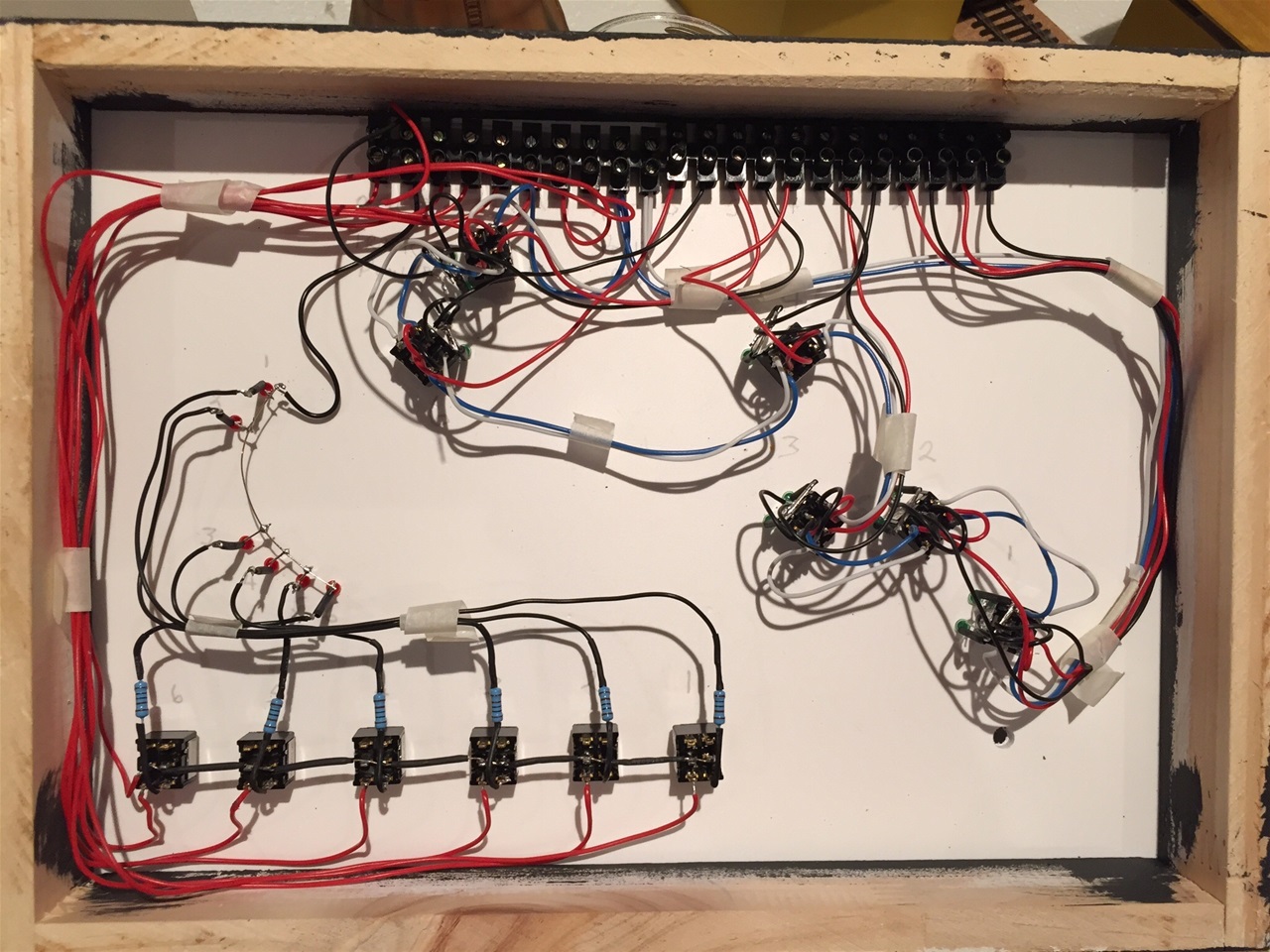

Panel wiring progressing nicely!
-
![]( "W&DCC15")
Wiring done by my good friend Colin, what a job!
-
![]( "W&DCC16")

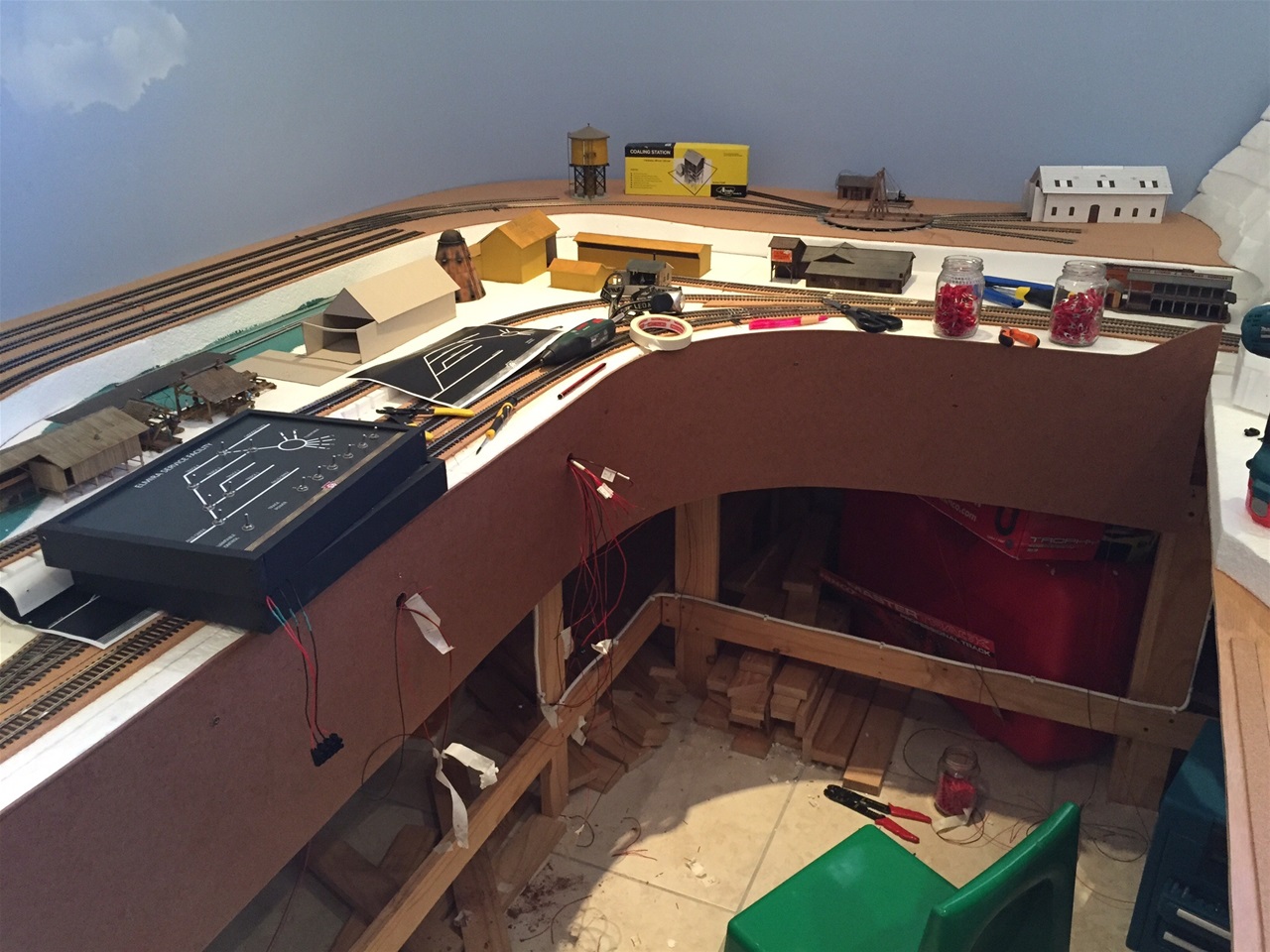

Masonite fascia installed, ready to fix panels
-
![]( "W&DCC17")

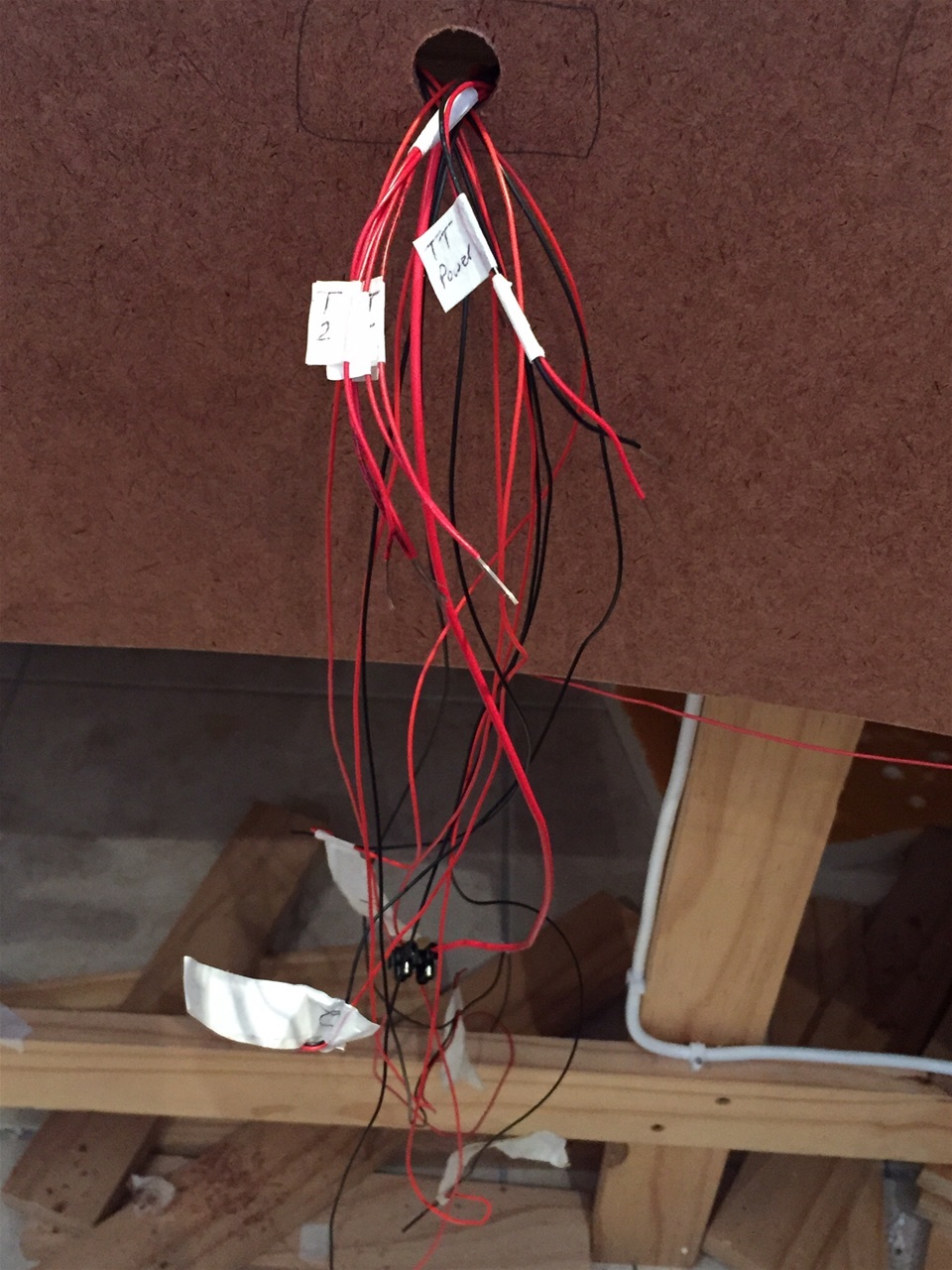

Wires pulled through fascia
-
![]( "W&DCC18")

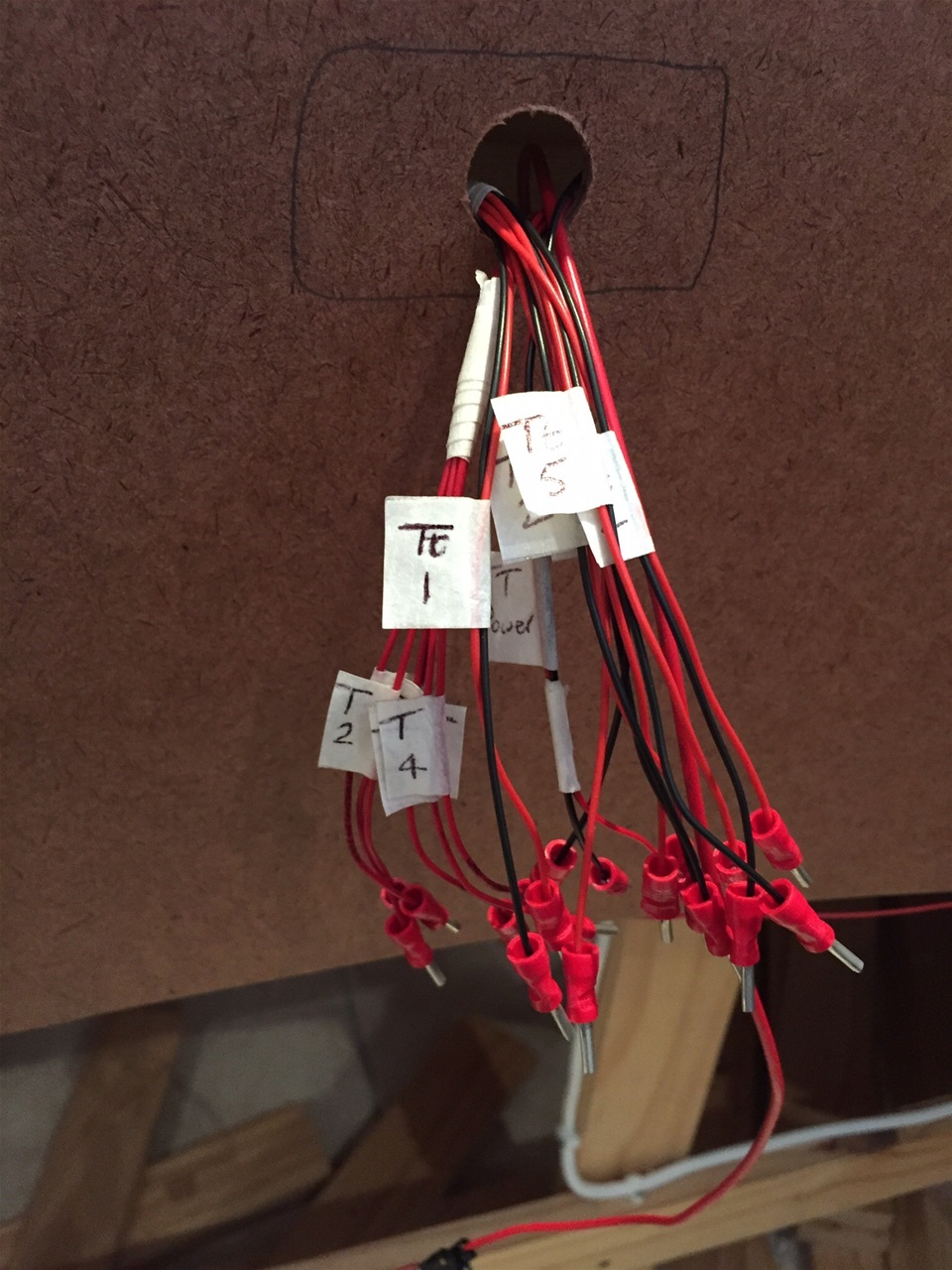

It is starting to make sense! Now the panel needs to be connected and fixed in place.
-
![]( "W&DCC19")

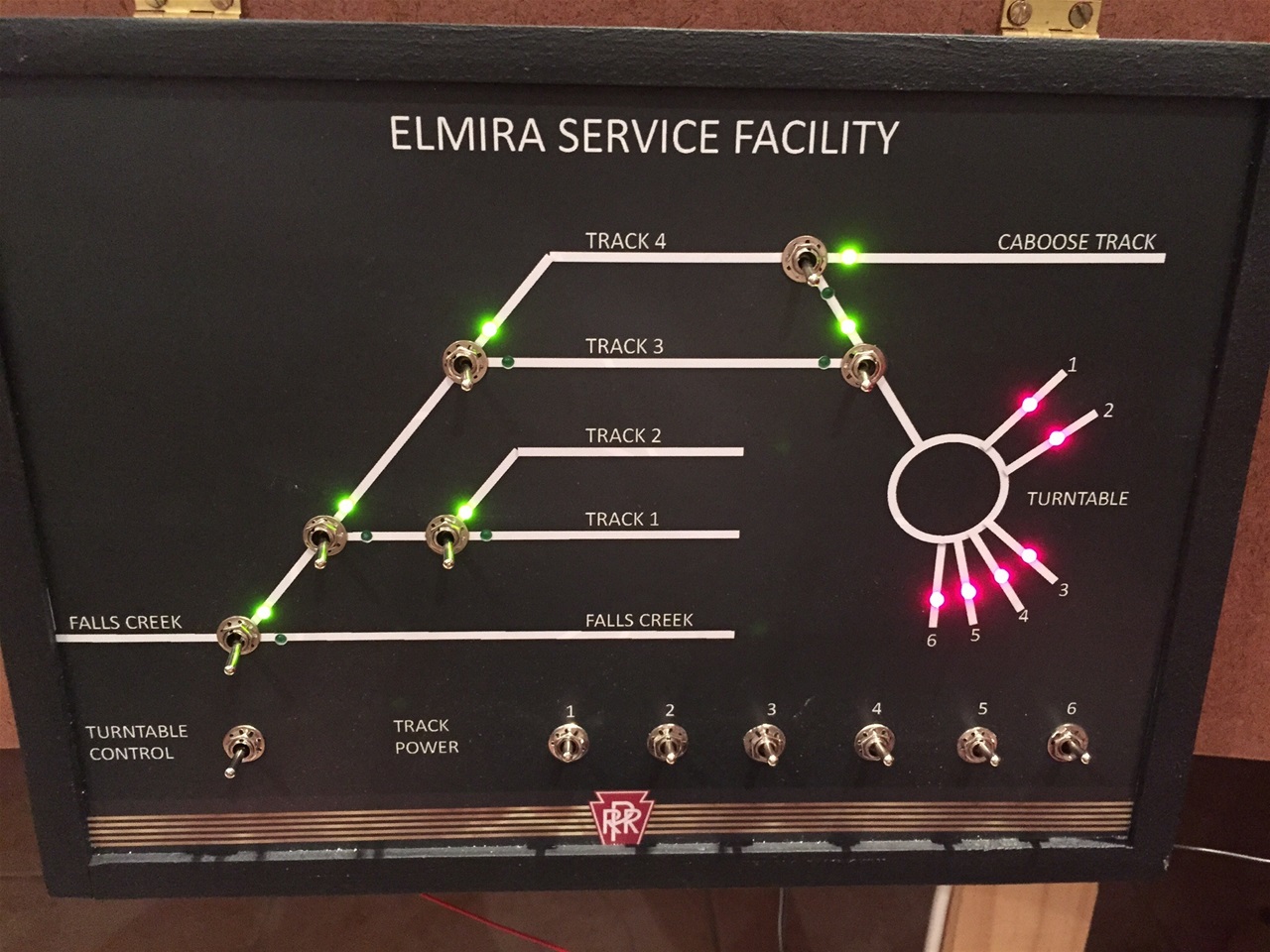

At last! First panel installed and wired. Only 15 to go!
